Air Gap Sensor for hydro/turbo-generators and electrical motors
Edge mount version for wind generators and electrical motors (AGS-4S & AGS-7,5S)
High accuracy, 50 microns (with oversampling)
Sensor probe made of high stability Glass Epoxy FR4 carbon particles electrode
Temperature compensated -20...140°C
Immune to strong magnetic fields, vibrations and deposits
Insulated DC/DC power supply
Optocoupler insulated output 0-20mA or 4-20mA
Easy to install
Very low profile Air Gap Sensor AGS is a
non contact capacitive type distance measuring transducer.

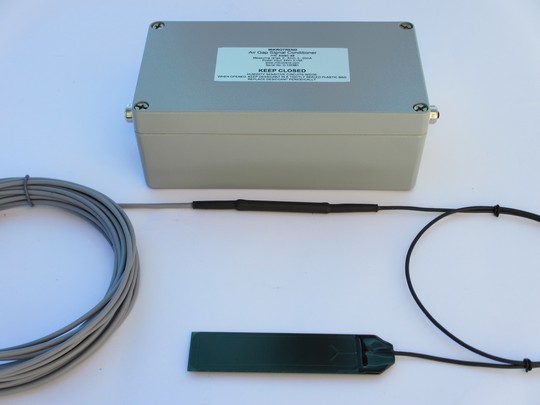

The system consists of a AGS sensor with
triaxial cable, preamplifier and Air Gap Sensor Conditioner AGSC.
Heavy duty aluminum waterproof
industrial housing shields sensor electronics from harsh
For easy integration within monitoring
systems, AGSC has it`s own DC/DC insulated power supply and
optocoupler insulated output.
